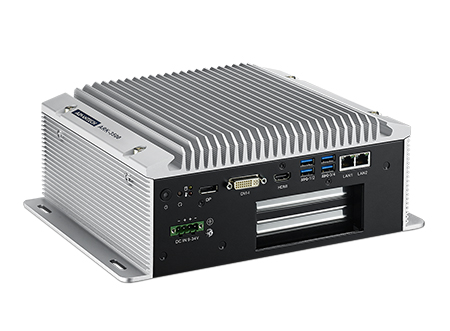

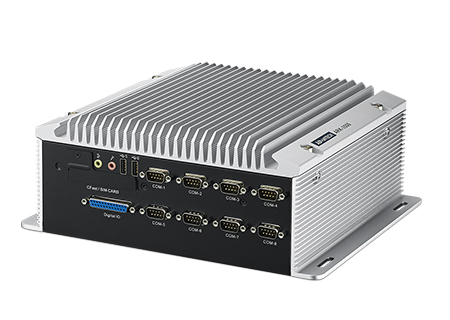

嵌入式工控機ARK-3500
第三代Intel? Core? i3/ i5/ i7 帶2個擴展槽和寬壓輸入嵌入式無風扇工控機
Main Features
  • 支持Intel® Core™ i3/i5/i7 移動系列處理器(rPGA) + Intel QM77 芯片組
  • 第三代Core i處理器支持獨立三顯：DVI + HDMI + DisplayPort
  • 內存支持DDR3/DDR3L SO-DIMM，最高達16GB
  • 2 個擴展槽位，可支持 PCI, PCIe x 1 & PCIe x 4 擴展卡
  • 9-34V寬壓直流電源輸入

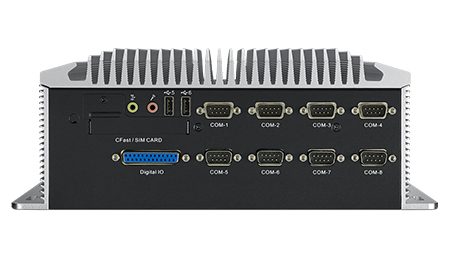

  • 豐富I/O接口，包含4×USB 3.0和8×COM
  • 彈性化存儲選擇，支持2×mSATA，1×CFast和2×2.5"SATA HDD/SSD
  • 支持 iManager, SUSIAccess 和 嵌入式軟件 APIs
     數據表(PDF)    技術資料下載
  規格表
　 　
ARK-3500F-00A1E
ARK-3500P-00A1E
Audio Interface Realtek ALC892, High Definition Audio, Line-out, Mic-in Realtek ALC892, High Definition Audio, Line-out, Mic-in
Environment EMC CE/FCC Class A, CCC, BSMI CE/FCC Class A, CCC, BSMI
Relative Humidity 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing)
Safety Certifications UL, CCC, BSMI UL, CCC, BSMI
Shock During Operation With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature (Operating) with SSD : -10 ~ 60° C with 0.7m/s air flow/with HDD : 0 ~ 40° C with 0.7m/s air flow with SSD : -10 ~ 60° C with 0.7m/s air flow/with HDD : 0 ~ 40° C with 0.7m/s air flow
Temperature (Storage) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F)
Vibration during Operation With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Ethernet LAN1 10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan 10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan
LAN2 10/100/1000 Mbps Intel I-210IT GbE, support Wake On Lan 10/100/1000 Mbps Intel I-210IT GbE, support Wake On Lan
Expansion Add-on Card Slot PCIe x 1 + PCIe x 4 2 x PCI
Mini PCIe 2 x Full-size Mini PCIe with SIM holder (Supports mSATA) 2 x Full-size Mini PCIe with SIM holder (Supports mSATA)
Graphics Chipset Intel QM77 Integrated GFX Gen 7 Intel QM77 Integrated GFX Gen 7
CRT VGA integrated in DVI-I port VGA integrated in DVI-I port
Display port 2560 x 1600 @ 60Hz (Video only, and only support on 3rd generation processor) 2560 x 1600 @ 60Hz (Video only, and only support on 3rd generation processor)
Dual Display VGA+DVI, VGA+HDMI, VGA+DP, DVI+HDMI, DVI+DP, HDMI+DP(DP not support on Celeron sku.) VGA+DVI, VGA+HDMI, VGA+DP, DVI+HDMI, DVI+DP, HDMI+DP(DP not support on Celeron sku.)
DVI-I 1920 x 1200 @ 60 Hz 1920 x 1200 @ 60 Hz
Graphic Engine DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1 DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1
HDMI Support HDMI 1.4, 1920 x 1200 @ 60 Hz Support HDMI 1.4, 1920 x 1200 @ 60 Hz
Triple Display DVI-D + HDMI + DisplayPort(not support on Celeron sku.) DVI-D + HDMI + DisplayPort(not support on Celeron sku.)
I/O Interface DIO 16 bit DIO 16 bit DIO
Serial Port 4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control 4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control
USB 4 x USB 3.0 ports (USB1,2,3,4); 2 x USB 2.0 ports (USB5,6) 4 x USB 3.0 ports (USB1,2,3,4); 2 x USB 2.0 ports (USB5,6)
Mechanical Construction Aluminum housing Aluminum housing
Dimensions 290 x 110 x 232mm (11.4" x 4.33" x 9.13") 290 x 110 x 232mm (11.4" x 4.33" x 9.13")
Mounting Desk/wall-mounting Desk/wall-mounting
Weight 4.8 kg 4.8 kg
Memory Max. Capacity 16 GB 16 GB
Socket 2 x 204-pin SO-DIMM 2 x 204-pin SO-DIMM
Technology DDR3/DDR3L 1600MHz DDR3/DDR3L 1600MHz
Power Consumption Max. 60/36.5/30/31.8W 60/36.5/30/31.8W
Typical 19.2/16.4/14.8/16.4W 19.2/16.4/14.8/16.4W
Power Requirement Power Adapter AC to DC, DC19V / 6.32A, 120W (Optional) AC to DC, DC19V / 6.32A, 120W (Optional)
Power Input Votage 9 VDC ~ 34 VDC 9 VDC ~ 34 VDC
Power Type AT/ATX AT/ATX
Processor BIOS AMI EFI 64Mbit AMI EFI 64Mbit
CPU Intel Core i7-3610QE/Core i5-3610ME/Core i3-3120ME/Celeron 1020E Intel Core i7-3610QE/Core i5-3610ME/Core i3-3120ME/Celeron 1020E
Frequency 2.3 GHz/2.7 GHz/2.4 GHz/2.2GHz 2.3 GHz/2.7 GHz/2.4 GHz/2.2GHz
L3 Cache 6 / 3 / 3 / 2 MB 6 / 3 / 3 / 2 MB
System Chipset Intel QM77 Intel QM77
Watts 45/35/35/35W 45/35/35/35W
Software Support Linux Ubuntu 12.04 Ubuntu 12.04
Microsoft Windows Windows 8 , Windows 7, XP Professional, XP Embedded, WinCE 6.0 Windows 8 , Windows 7, XP Professional, XP Embedded, WinCE 6.0
Storage HDD Two 2.5" SATA HDD Bays with maximum device height 9.5mm, SATA III, Gen 3 Support (Max. Data Transfer Rate 600 MB/s), Support Two 2.5" SATA HDD Bays with maximum device height 9.5mm, SATA III, Gen 3 Support (Max. Data Transfer Rate 600 MB/s), Support
Solid State Disk 1 x CFast Card slot 1 x CFast Card slot
